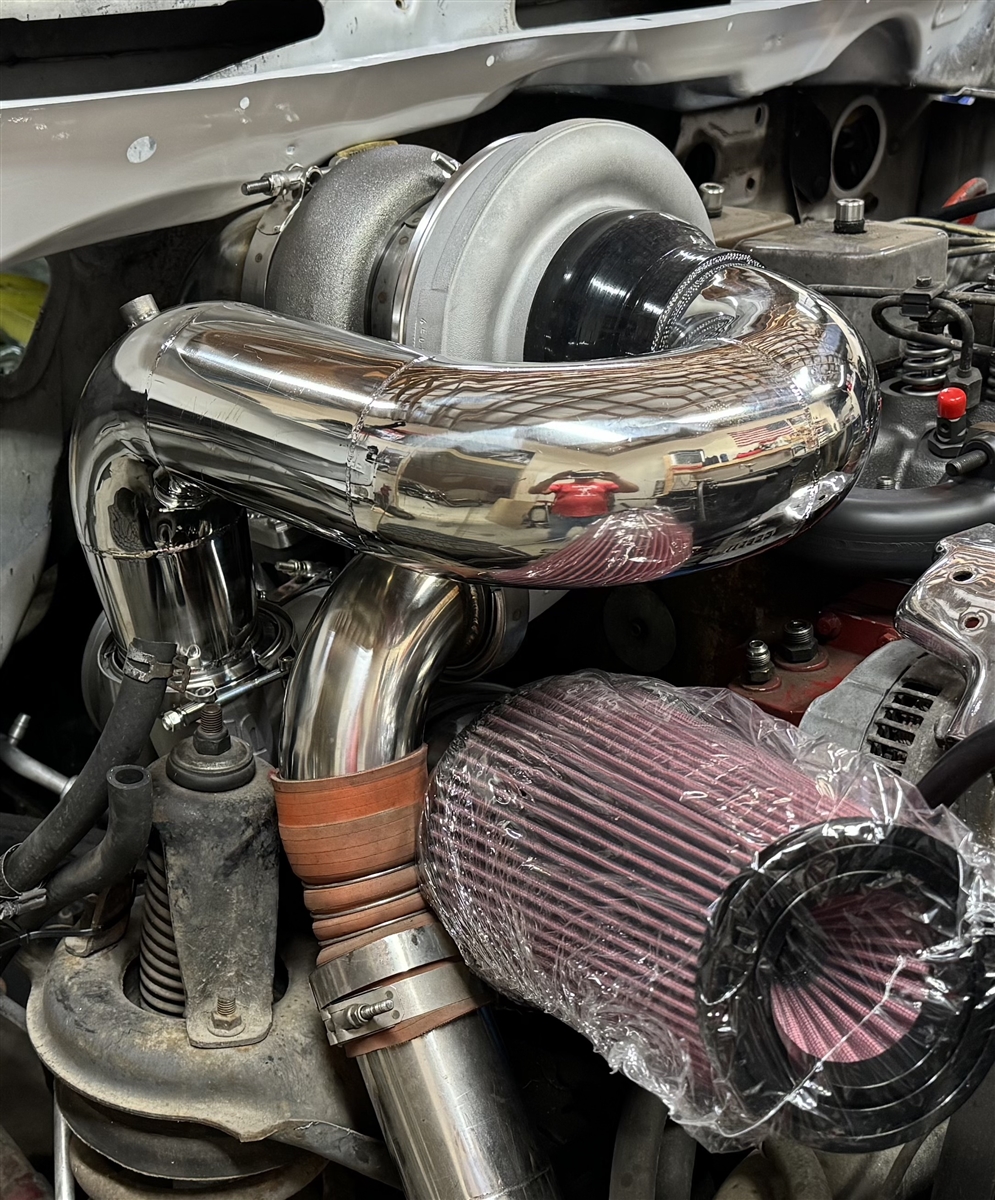

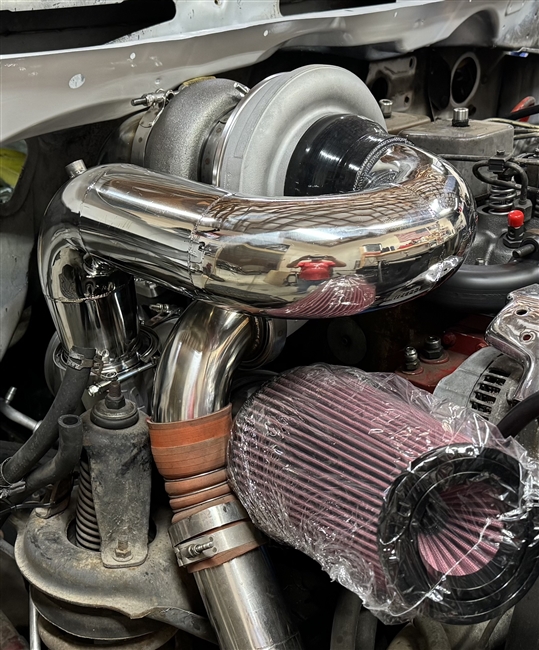

The Crazy Carl's S400/S400 Racing Twin Kit Piping Only for 2nd Gen and 3rd Gen Dodge Cummins trucks!
You bring your own S400 T4 and S400 T6 Turbo and Steed T4 Manifold -
with prior approval from us for fitment. Email photos to [email protected]
304 POLISHED piping (intake/intercooler/cold pipe), made for 5.9 Cummins engines, years 94-07.
Designed the Crazy Carl's way- exceeding your expectations with better quality material, superior design, and competitive pricing.
This kit provides sufficient airflow to support 1200+ horsepower with the right supporting mods.
*All boost piping is made with 304 stainless steel piping and TIG-welded
*Built to fit turbos such as 467/83/1.00 T4 over a 488/96/1.32 T6 with standard cover or compact race cover.
*Other S4/S4 configurations available upon request. Can pair with turbo UP TO 494/102/1.32 T6 at additional cost.
Kit includes:
304 SS HD Hot Pipe
304 SS 4" 1-piece metal cold pipe,
304 SS Intercooler pipe
304 SS full 5" intake pipe,
4" or 5" aluminized down pipe
SS top and bottom turbo oil feed lines,
SS top and bottom turbo oil drain lines,
Bottom turbo support bracket,
SS Top turbo spacer plate
Quality S&B large high-flow filter,
SS V-band clamps,
SS T-bar clamps,
Gaskets, hardware, and instructions.
You will need to remove or relocate the Passenger-side battery.
Like all race kits, it will require removal of transmission heat exchanger. We recommend additional coolers.
***These kits are custom-made to order and may take 3-4 weeks or so to ship.*****
|
|
|
 |
|
 |
|
