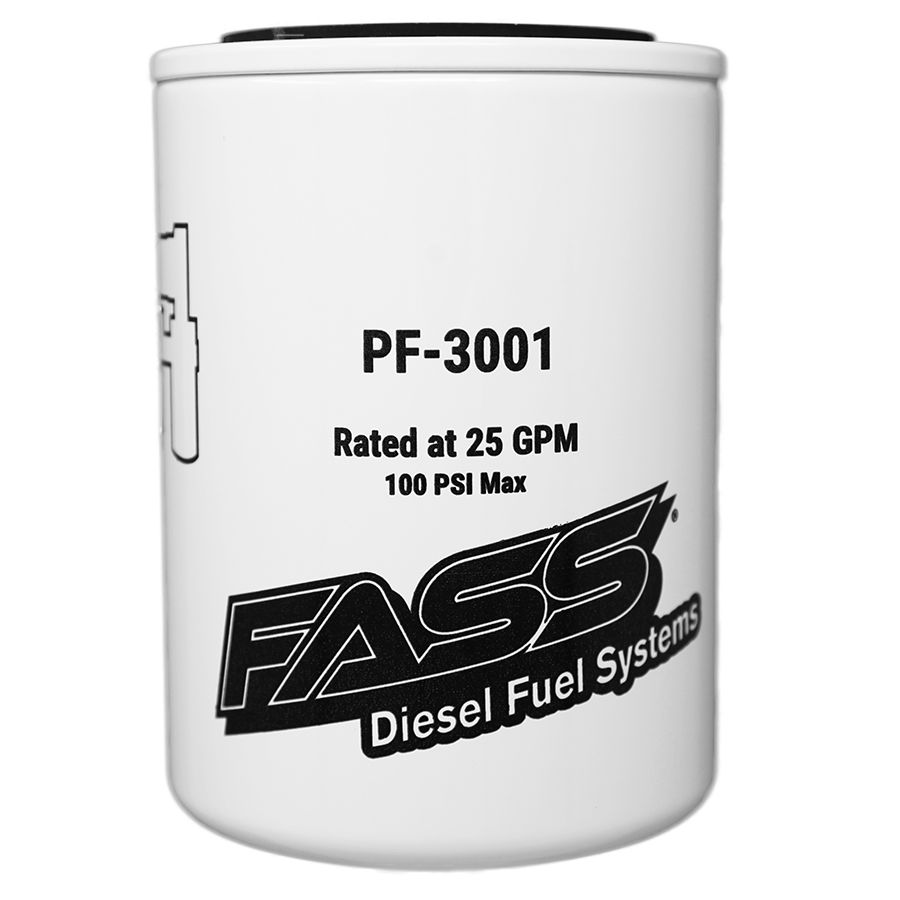

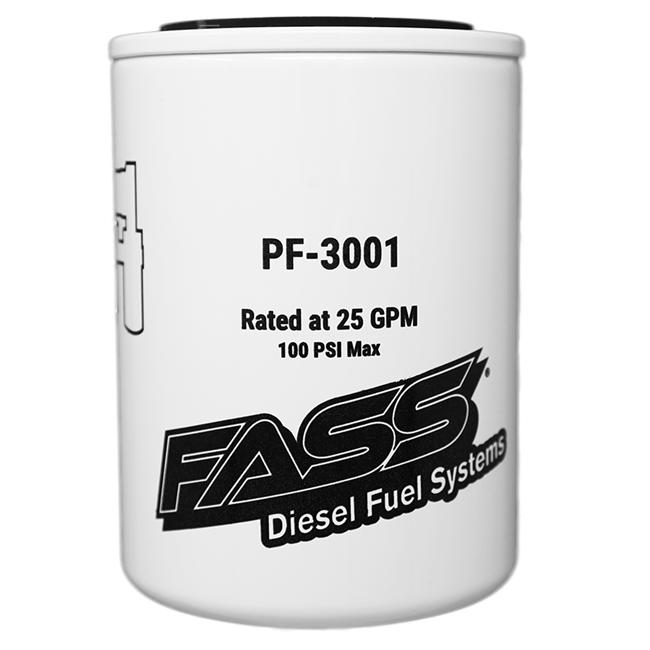

Fass Fuel Filter for Titanium System

Fass Fuel Filter for Titanium System



Replacement Diesel Fuel Filter for Fass 150 Series Pumps / HD Series
Our Price: $20.90

Availability:: Usually Ships in 24 Hours
Product Code: PF3001
Qty:

Description

FASS Fuel Filter is a direct replacement for your dual fuel/water separator Titanium FASS Fuel System. Replaces the FF-3003 and FWS-3003 on Titanium Series.

FASS Fuel Systems PF-3001 Particulate Filter (PF-3001) is rated @ 144 microns.
The 144 Micron Particulate Filter on the suction side will drastically reduce cavitation, increase flow properties, lower the sound output of the FASS System, and removes larger fuel particulates.

The new XWS-3002 MUST bus used in conjunction with the PF-3001, the new filters cannot be used in combination with the FF-3003/FF-3010 or FS-1001/FS-1020.

Install info

When replacing the discontinued filters with the new XWS-3002 and PF-3001, the XWS-3002 will now be placed on the pressure side of the pump and the PF-3001 will be placed on the suction side. PLEASE SEE THE LOCATION DIAGRAM ON THE NEW FILTERS FOR PROPER FILTER PLACEMENT!
