P7100 Performance Overflow Valve for Cummins - OFV060HP

P7100 Performance Overflow Valve for Cummins - OFV060HP

Alternative Views:

Our Price: $32.00

Availability:: Usually Ships in 24 to 48 Hours
Product Code: TORK-OFV060HP


LOW Fuel Pressure With Your AIR DOG AND FASS PUMP?


* Use with super street performance Cummins trucks.

* Fuel pressure range of 43 to 50 PSI.

* Raises fuel pressure at full power.

Do you experience low fuel pressure at wide open throttle (WOT) and just accept it as normal? Have you ever thought that low fuel pressure gives your competitor an edge?

Anthony Reames, the technical manager at Air Dog, asked us to solve the low fuel pressure problem with the Bosch P pump. Cummins owners report that the fuel pressure drops to as low as 16 PSI during full throttle runs. We jumped on this technical request because we thrive on a challenge. Solving problems is what Tork Teknology is all about.

The first thing we did is throw all assumptions out the window. We found that in most cases, they can be very misleading. Our slogan, that we live by, is "one good test is equal to a thousand expert opinions". This is how we attack a problem.

Air Dog test flow.

After installing an Air Dog II DF165 on our '98 Dodge Cummins test truck, we routed the 1/2" feed line to an accurate flow meter and ran all the return fuel through an additional flow meter. The fuel pressure was monitored by a glycerine filled pressure gauge. The results (shown left) align exactly with proven hydraulic formulas. Fluid will flow a specific volume through an orifice at a specified pressure and specific gravity. Simply put, a fluid will flow more volume (gpm) as the pressure increases through the same size orifice. Put another way, reduce the orifice diameter, and the GPM flow will drop.


You may have asked yourself why Air Dog and FASS equipped Dodge Cummins trucks will show good fuel pressure at idle and cruise, but the pressure drops at full throttle, to as low as 16 PSI. Take a look at the photo above. The flow meter indicates diesel fuel flow of 1.09 GPM. This is the volume of fuel flowing thru the inlet orifice at the base of the overflow valve. (see photo right) Actually, it translates into 1.14 GPM (multiply number by 1.0495 correction factor) flowing into and out of the P7100 pump. That is the volume of fuel flowing back to the tank through the Cummins overflow valve. Yes, we tested both the Bosch and Tork Tek overflow valves. If you are using one of the old Bosch valves with the .168 inlet orifice, your fuel pressure will never allow you to win ANY competition event becuase of very low fuel pressure.



I'm not saying that the Air Dog and FASS are not good pumps. Both are quality pumps. The problem is the orifice leakage is too large and bypasses too much fuel to tank. This leakage produces low fuel pressure at WOT.

We now know that the inlet orifice on a standard Bosch overflow valve will flow 1.14 GPM back to tank. This is how it lowers your fuel pressure and kills your Cummins diesel performance! If you run an AirDog 100 GPH (gallons per hour) pump, you are pumping 1.66 GPM. (100 GPH divided by 60 minutes/hour = 1.66 GPM) You are losing 69% of your pump volume thru the overflow valve. That's almost 75% of the fuel doing no work at all! Let's do the numbers for the Air Dog II DF165 which is rated at 2.75 GPM. If you lose 1.14 GPM to tank, 41% of your pumps capacity is LOST. Let's suppose you use the AirDog II DF200 which flows 3.33 GPM. 34% of the pumps capacity is doing nothing for your performance 12V Cummins.

It's easy to see why performance P pump users are showing low fuel pressure at WOT. Too much diesel fuel is pumped through the Bosch overflow valve and back to tank. This translates into lower HP and torque performance numbers with your Cummins 12V. It could make the difference between winning or going home defeated.

Another problem that we uncovered was at a very specific pressure, the fuel flow through the overflow valve can be dead headed. This can be dangerous as the P pump needs fuel flow to help keep it cool. If you set the AirDog pressure regulator to slightly less than the OFV setting, fuel flow and pump cooling STOP. Also if you adjust the OFV by adjusting the shims, stretching the spring or adjust the Tork Tek overflow valve, the same problem can exist. The solution had to cure low fuel pressure and eliminate any possibility of stopping fuel flow thru the valve.


We know from testing the Cummins 5.9 fuel system, with the stock lift pump, that fuel flow is .59 GPM (max) at 2200 RPM. The engineers at Bosch spent a lot of R & D time to make sure the P pump stayed cool at the fuel flow the lift pump delivered. The Bosch P7100 injection pump will run without problems for 300 to 500,000 miles or more! There are commercial trucks that have seen 1,000,000 miles with the P pump and the Cummins lift pump.

The smallest of the four valves is the OFV070HP. This valve is for super modified, race only trucks. The 070HP orifice will flow .565 GPM at 45 PSI. So, even with the smallest of the valves, you will still be within 4% of the cooling capacity of a stock system.


How did we test for a solution? We machined 12 prototype overflow valves with replaceable orifices, similar to Holley carb jets. The beta testers could now replace the jet with a smaller one to the point where the fuel pressure was aceptable at WOT. In other words, the fuel pressure remained constant from idle to full throttle. Each jet change and fuel pressure reading was documented on a chart. In addition, I made the same tests on our '98 Dodge Cummins 12V.

It became clear after the testing was complete, which sizes cured the problem. Each size created a fuel pressure range at WOT. We also discovered that a very small change in orifice size will make a dramatic change in fuel pressure and fuel flow.


To illustrate how fuel pressure can affect Cummins diesel horse power and torque, one beta tester asked his brother to try the prototype valve on a dyno. The owner of Left Coast Diesel made a run with a standard Cummins OFV and then installed the prototype Tork Tek HP valve. The first thing he noticed was consistent fuel pressure across the RPM band. No other changes were made to the engine. He achieved a 27HP increase for 3 minutes worth of work. His power increased from 663HP to 690HP at 93 MPH. That 27 peak HP increase can be the difference between winning and losing.

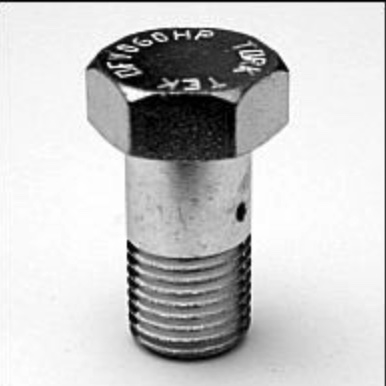

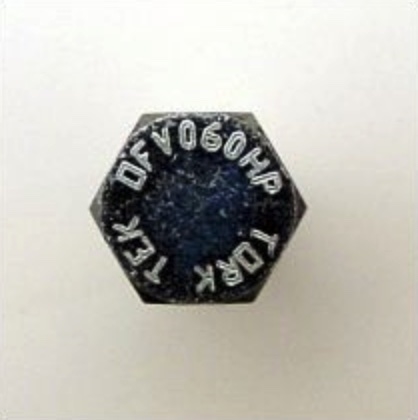

ofv060hpside.jpgThe OFV060HP has the third smallest orifice for highly modified Cummins diesel engines. Your truck is street driven. Your fuel system, engine and turbo have been modified. Your horsepower will be in the 500 to 600HP range. This valve is for super hot Cummins performance trucks using an AirDog, Raptor or FASS pump. Yes it can be used for P pump conversions on the 24V Cummins.

What fuel pressure should you be running? Here is a general rule to determine the fuel pressure you should be at. Multiply the governor spring rpm (in thousands) times 10. In other words, you want 10 PSI of fuel pressure per 1000 RPM of govenor speed. If you installed a 3K govenor kit, you need a minimum of 30 PSI at full power. A 4K kit requires 40 PSI at WOT. 5K equals 50 PSI. Remember, this is at full power, not idle or cruise.

Fuel pressure will be in the 43 to 50 PSI range if you add the 40 PSI spring. The standard spring will limit the fuel pressure you can reach. If you are using the original Air Dog pump, it is factory set at 30 PSI. If you want higher fuel pressure, you will have to install a 40 PSI spring. The AirDog I and II use different springs to achieve higher fuel pressure. They are not interchangeable. Please note that you will not achieve higher fuel pressure by swapping out the spring. You have to fix the leak first.

Do not use the HP valve on a stock fuel system! This valve will raise pressure spikes to the point that the stock fuel filter canister will blow a seal. The valve is intended for Cummins P7100 trucks using a FASS, Air Dog or high volume, performance fuel pump only.
